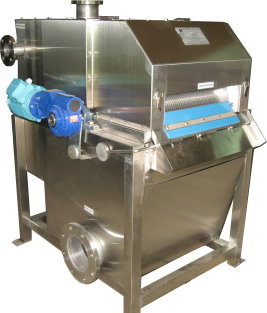

Rotary Drum Screen

The drum screen mesh can be cleaned and washed automatically with its mechanical rotation. Compare to conventional shake or fixed screens, its “self-cleaning” feature has significantly reduced the wash water volume and footprint requirement.


Purpose:

• Drum screen is used to remove coarse solids such as wood chips, fragments of cloth, metal filings, or fine solids such as gravels, hairs, saw dusts, grease, and kitchen waste.

Features:

• Effective screening to prevent clogging and wearing in the process.
• Small footprint requirement.
• Easy installation and operation.
• Low power consumption with approximately 1/15 of the power required by conventional screens.
• High process capacity and efficiency.
• Feasible for high temperature and high viscosity wastewater.
• Optional brush wheel or high pressure washing are available.

Applications:

• Pulp and paper, slaughterhouses, food and beverage processing.
• Municipal wastewater headwork preliminary treatment.
• Sludge thickening and solids separation.

• Equipment Process
• Equipment Drawings and Section Views
• Specifications
